X-Fill

Automatic Insulation Filling Bridge for Timber Frame Construction

Contact a specialist

By providing your details you are giving consent for us to contact you to discuss related products and services that may be of interest to you.

About this Product

  • X axis floor mounted rails with servo-controlled rack and pinion drive
  • Blowing plate mounted to Y axis with servo driven positioning
  • Pneumatic Z axis with pressure switch
  • Proprietary blowing plates ensure the correct fill density in all the areas of the element
  • Dedicated control unit is independent of the bridge control system
  • A variety of filling systems available depending on the insulation material

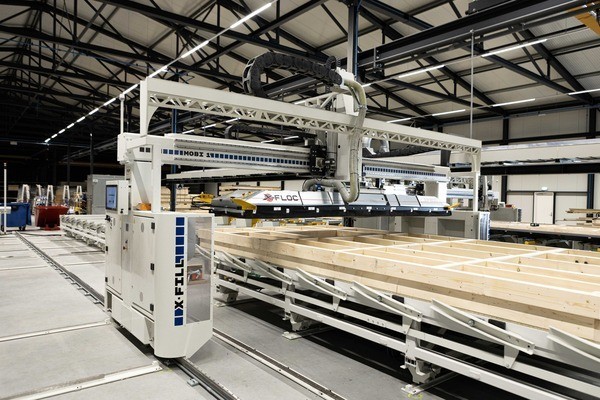

X Fill Insulation Bridge 27
X Fill Insulation Bridge 27

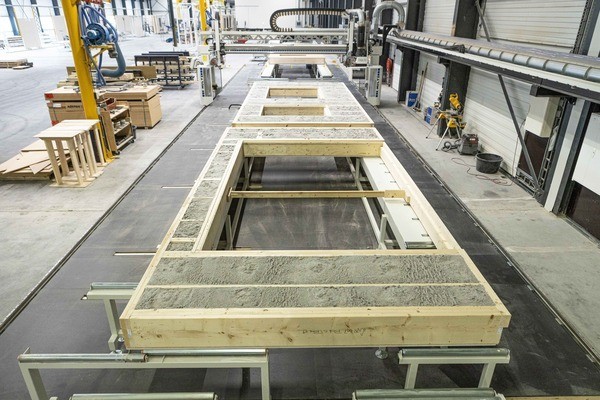

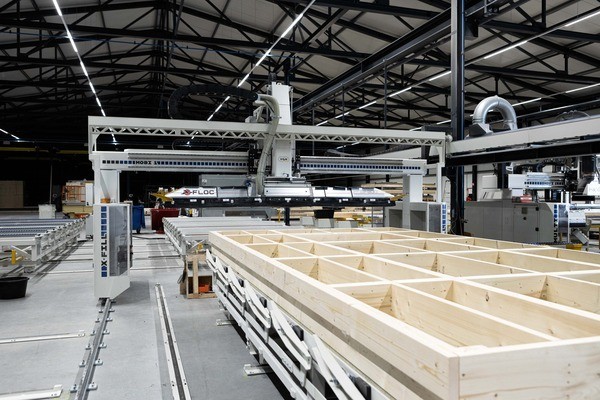

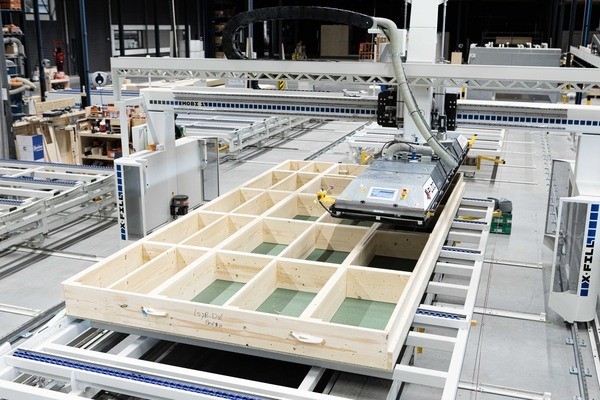

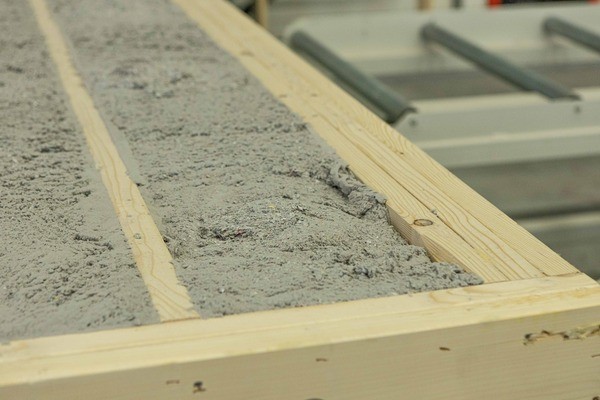

The MBA X-Fill bridge system is an automated setup designed to quickly fill prefabricated wall panels with various insulation materials like cellulose, wood fibre, and glass or rock wool. The system adjusts to any cavity size or shape, thanks to its modular blowing plate. Users input the wall panel dimensions into the touchscreen, and the integrated PC control with Windows 10 calculates the required material volume, completing each fill in seconds.

Contact A Specialist

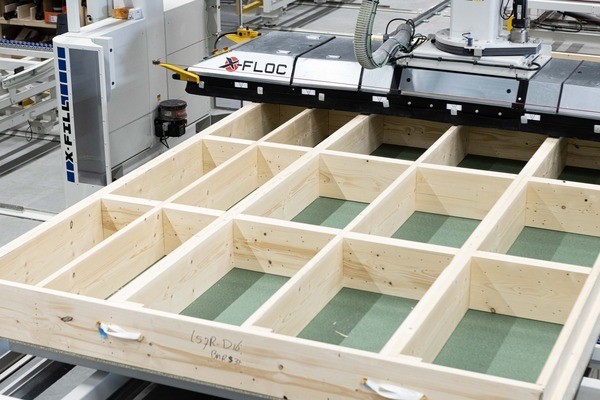

X Fill Insulation Bridge 21
Contact A Specialist
phone icon +44 (0)151 548 9000 email icon info@modularbuildingautomation.eu
Specification
  • X axis floor mounted rails with servo-controlled rack and pinion drive
  • Blowing plate mounted to Y axis with servo driven positioning
  • Pneumatic Z axis with pressure switch
  • Proprietary blowing plates ensure the correct fill density in all the areas of the element
    Dedicated control unit is independent of the bridge control system
  • A variety of filling systems available depending on the insulation material
