Steel Frame Construction

X-Multi Steel Frame

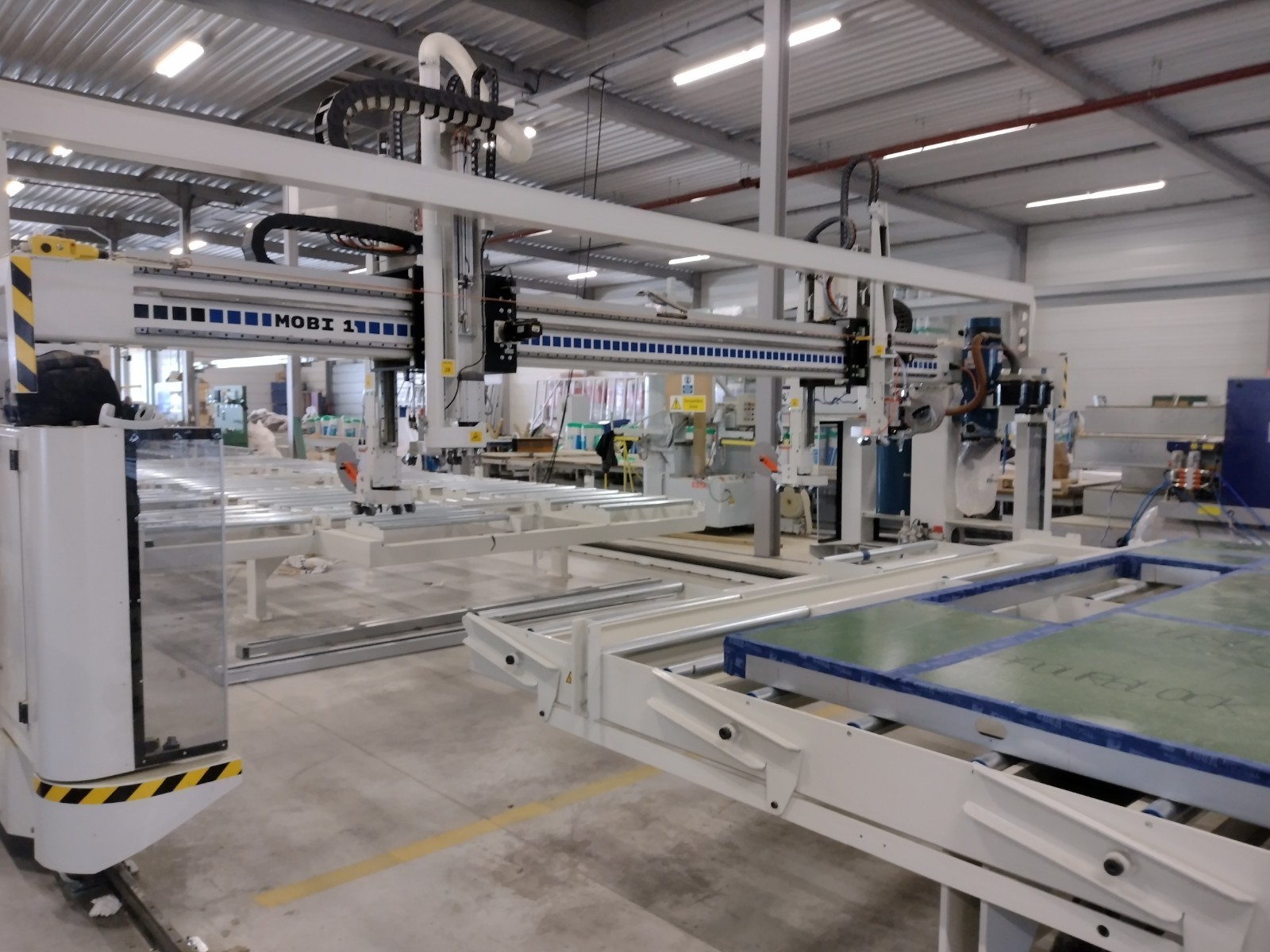

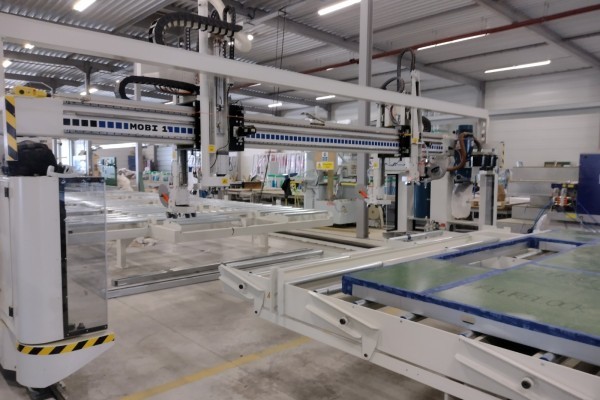

Fully Automatic Multi-Function Bridge for Steel Frame Construction

Contact a specialist

By providing your details you are giving consent for us to contact you to discuss related products and services that may be of interest to you.

About this Product

  • Full PC control with 17” touchscreen
  • Interactive display of operation being performed
  • Automatic download from drawing software.

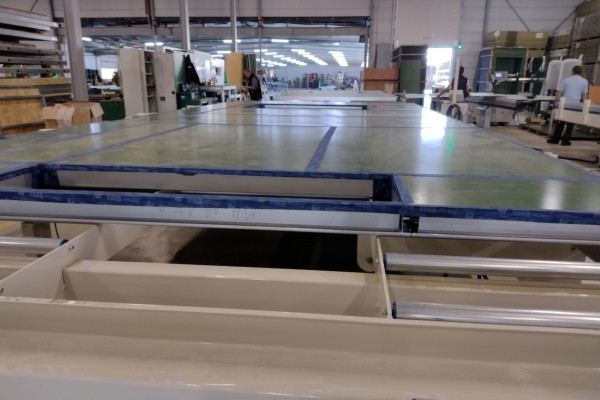

  • Heavy-duty tables with one fixed side and one moving side
  • 90-degree squaring corner blocks with pneumatic retraction to enable the panel to move to the next position when finished
  • 1300mm minimum panel height
  • Maximum panel height up to 3.5m (optionally extendable)
  • Maximum panel length 6m – optionally up to 13m
  • 400mm wide heavy-duty work tables
  • 825mm working height
  • 300mm maximum panel thickness (optionally 5000mm)
  • Motorised table opening with automatic brake locking
Steel Frame Construction
Steel Frame Construction

A fully automatic multifunction bridge station for nailing or screwing sheet materials in accordance with the design specifications to steel frame including the following functions:

  • Nailing or stapling of sheeting
  • Routing of openings or overhangs
  • Application of breather membrane
Contact A Specialist
Contact A Specialist
phone icon +44 (0)151 548 9000 email icon info@modularbuildingautomation.eu
Specification
  • Full PC control with 17” touchscreen
  • Interactive display of operation being performed
  • Automatic download from drawing software.
  • Heavy-duty tables with one fixed side and one moving side
  • 90-degree squaring corner blocks with pneumatic retraction to enable the panel to move to the next position when finished
  • 1300mm minimum panel height
  • Maximum panel height up to 3.5m (optionally extendable)
  • Maximum panel length 6m – optionally up to 13m
  • 400mm wide heavy-duty work tables
  • 825mm working height
  • 300mm maximum panel thickness (optionally 5000mm)
  • Motorised table opening with automatic brake locking

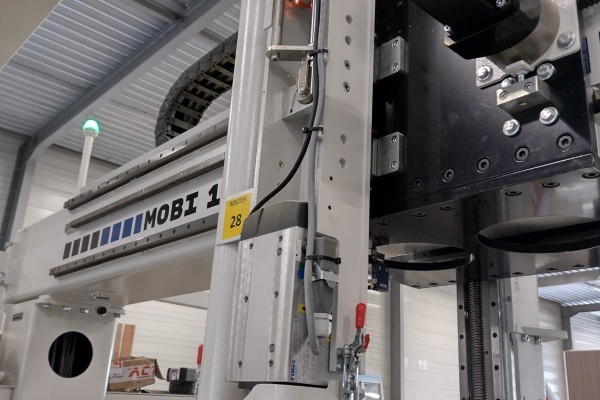

  • Bridge mounted with one nailing/stapling tool mounting as standard. (Options for 2 or 3 nailing tool mounts)
  • Full integration with major software packages including Sema, Dietrich's, HsbSoft, CADWORKS, Gang Nail & Mitek.
  • Batten application system with a guide to ensure the battens are kept straight before nailing including batten storage area
  • Pneumatic lifting rollers to assist in the manual transporting of the finished panel to the next position.
  • Optional electrically driven sheet feeding system, including automatic sheet feeding and height indexing of the support table.

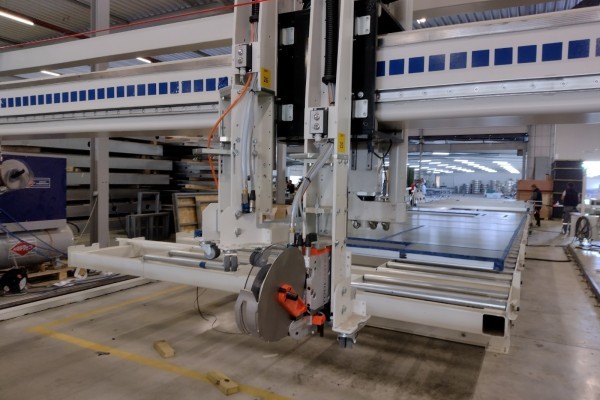

  • Optional router unit with 4kw motor - servo drive controlled
